Elbow Dysplasia

All NyaStar Irish Red and White Setters are Tested by OFA to be Normal for ED


The Three Faces of Elbow Dysplasia

Elbow dysplasia is a general term used to identify an inherited polygenic disease in the elbow of dogs. Three specific etiologies make up this disease and they can occur independently or in conjunction with one another. These etiologies include:

  1. Pathology involving the medial coronoid of the ulna (FCP)
  2. Osteochondritis of the medial humeral condyle in the elbow joint (OCD)
  3. Ununited anconeal process (UAP)

Studies have shown the inherited polygenic traits causing these etiologies are independent of one another. Clinical signs involve lameness which may remain subtle for long periods of time. No one can predict at what age lameness will occur in a dog due to a large number of genetic and environmental factors such as degree of severity of changes, rate of weight gain, amount of exercise, etc. Subtle changes in gait may be characterized by excessive inward deviation of the paw which raises the outside of the paw so that it receives less weight and distributes more mechanical weight on the outside (lateral) aspect of the elbow joint away from the lesions located on the inside of the joint. Range of motion in the elbow is also decreased.

elbow Dysplasia Grades

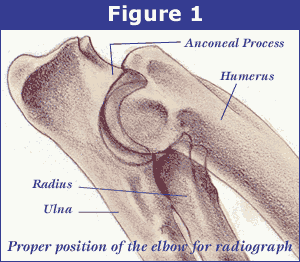

Proper position for elbow evaluation

Elbow dysplasia has multiple inherited etiologies which may occur singularly or in combination. These etiologies include fragmented medial coronoid (FCP) of the ulna, osteochondritis of the medial humeral condyle and ununited anconeal process (UAP). The most sensitive view used to diagnose secondary degenerative changes in the elbow joint is an extreme flexed medio-lateral view of the elbow which is required by the OFA and recommended by the International Elbow Working Group. The veterinary radiologists are most interested in the appearance of the anconeal process of the ulna.

When there is instability of the elbow joint due to elbow dysplasia, one of the most sensitive radiographic findings is new bone proliferation (osteophytes) on the anconeal process of the ulna associated with secondary developmental degenerative joint disease.

Bone proliferation can be very subtle to visualize in some dogs and may require the use of a special light source (hot light) rather than a traditional view box to diagnose it. Other arthritic findings such as sclerosis in the area of the trochlear notch of the ulna and bone spurs at joint edges are also reported. If fragmentation of the medial coronoid only involves the cartilage, it may not be seen radiographically but occasionally if the bone is also fragmented, it can be visualized as a separate calcific opacity superimposed over the radius.

Ed figure 3Elbow Dysplasia

Grading Elbows

For elbow evaluations, there are no grades for a radiographically normal elbow. The only grades involved are for abnormal elbows with radiographic changes associated with secondary degenerative joint disease. Like the hip certification, the OFA will not certify a normal elbow until the dog is 2 years of age. The OFA also accepts preliminary elbow radiographs. To date, there are no long term studies for preliminary elbow examinations like there are for hips, however, preliminary screening for elbows along with hips can also provide valuable information to the breeder.

  • Grade I Elbow Dysplasia: Minimal bone change along anconeal process of ulna (less than 3mm).
  • Grade II Elbow Dysplasia: Additional bone proliferation along anconeal process (3-5 mm) and subchondral bone changes (trochlear notch sclerosis).
  • Grade III Elbow Dysplasia: Well developed degenerative joint disease with bone proliferation along anconeal process being greater than than 5 mm.
